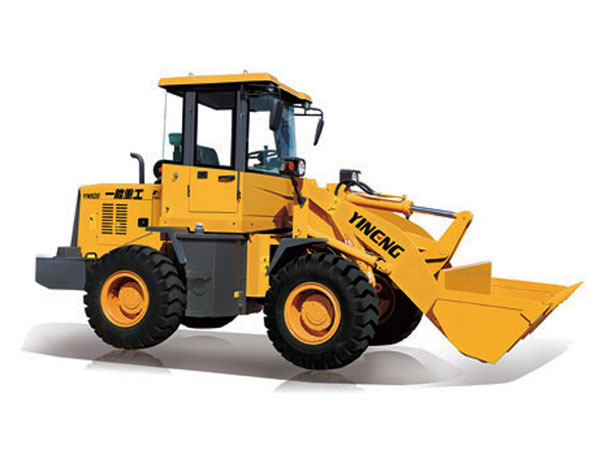

YN920D
| Item |
Specifications |
Item |
Specifications |
| Bucket capacity |
0.6m3 |
Rated Power |
39Kw/2400rpm |
| Rated load |
1200kg |
Tyre |
16/90-16 |
| Dumping height |
3010mm |
Overall Dimensions |
5050*1860*2630 |
| Wheel thread |
1430mm |
Operating Weight |
3500kg |
| Wheel base |
2210mm |
Min.Ground Clearance |
260mm |
| Engine Model |
Yunnei YN27 |
Max. speed |
22km/h |
Description
- Adopt Xinchai A4k41g Diesel Engine.
- Hydrodynamic Transmission Technology and Separated Structure, Make High Reliability and Easy Maintenance.
- Controlled by Flexible Shaft, Hydraulic power shift Gearbox With 2 Forward and 2 Reverse Gears Makes Operate Easy.
- Single Pump ,Split flow working Hydraulic System Makes Lower Consumption and Excellent Performance.
- Double Sealed Hydraulic pipeline joint with 24o awl and O Ring of International Standard, Avoids oil Leakage Obviously.
- Load Sensing fully Hydraulic Steering System Makes Operation Easy.
- Air over Hydraulic Break System ,Caliper Disc Brakes.
- Working Device with Automatically Leveling Ability at High Position.
- Bucket Articulated Point Take Sealed, Lubricated, Dust-Proof Layers, Which Owns Good Durability.
- Integral, Luxury Instrument Board.
- New Luxury Cabin.
