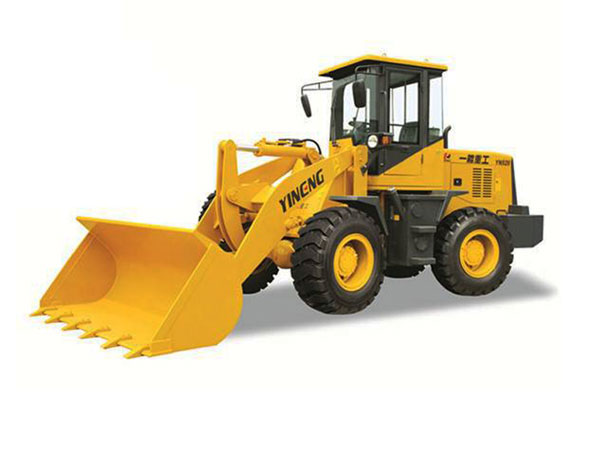

YN926G

Item Specifications
Bucket capacity 1.1m3
Rated load 2000 kg
Dumping height 2750 mm
Rated Power 60KW / 2400Rpm
Tyre 16/70-20
Overall dimensions 5880*2060*2820mm
Operating Weight 6000kg
Description
  • YTO diesel engine is adopted, with strong power.
  • Applying hydrodynamic transmission technology, single stage, 3 elements torque converter owns sim¬ple structure and high reliability.
  • Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse gears makes operation easy.
  • Operation Easy.
  • Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
  • Double sealed hydraulic pipeline joints with 24° awl and O ring of international standard, avoids oil leakage obviously.
  • Load sensing fully hydraulic steering system makes operation easy.
  • Air over hydraulic brake system; Caliper disc brakes.
  • Working device with automatically leveling ability at high position.
  • Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
  • Integral, luxury instrument board.
  • New, luxury cabin.
