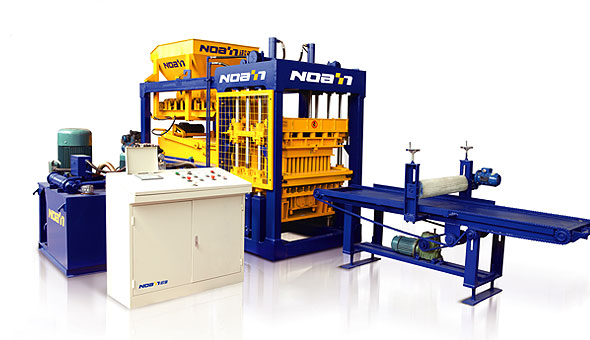

QT8-15

Technical Data
Overall Dimensions 6800*3800*2660(mm)
Pallet Size(mm) 850*850*25(Bamboo)
Machine Weight 9100kg
The Frequency Of Vibrate 50-90Hz
Max Excitation Force 80KN
Cycle Time(s) 15-20
Installed Capacity(kw) 31.7
  • Vibrator and the workbench to become an organic whole, reduce joint surface processing, reducing fittings, reduce the loss of energy transfer, improve the efficiency of the vibration. Using the workbench hole on the tank, and narrow opening area, put an end to the oil, to avoid damage to parts; At the same time increase the eccentric shaft hole, intermediate by excessive gear connection, thereby increasing the vibration area effectively, make the vibration are more, ensure the compactness and strength of block products.
  • USES the air spring pneumatic cylinder clamping, optimal damping effect, and can realize the load measurement and height control. Vibration isolation effect is good, can reduce the mechanical vibration generated by the bath.
  • Quick die change equipment, ensure the pressure
Description
SPEC. Hollow Block 390*200*190mm Perforated Brick 390*150*190 mm Brick 390*100*190 Rectangular Pavers 200*100*80mm I-Shape 200*165*(60-80) mm S-Paver 225*112.5*(60-80) mm
Code Hollow Block Hollow Block solidbrick Hollow Block l shape s paver
Pcs/Pallet 8 6 14 30 12 20
Pcs/Hour 1440 2520 5400 2160 3600
Pcs/8 Hour 11520   20160 4320017280 28800
